プロダクト細部
起源の場所: 中国広州
ブランド名: ZH
証明: CE
支払及び船積みの言葉
最小注文数量: 1
価格: $10,000
重さ: |
3000 |
適切な掘削機: |
20~50トン |
材料: |
Q355B |
長さ: |
12-35m |
厚さ: |
6mm |
スライダー材料: |
ナイロン |
滑り輪の材料: |
鋼鉄 |
メインロープの直径: |
30mm |
補助ロープの直径: |
26mm |
コネクタタイプ: |
ニンボ |
スライドホイール素材: |
ポン |
潤滑システム: |
濃縮 |
最大深度: |
10000-30000mm |
有効長: |
7600-25100mm |
バケット容量: |
0.2-2.5cbm |
重さ: |
3000 |
適切な掘削機: |
20~50トン |
材料: |
Q355B |
長さ: |
12-35m |
厚さ: |
6mm |
スライダー材料: |
ナイロン |
滑り輪の材料: |
鋼鉄 |
メインロープの直径: |
30mm |
補助ロープの直径: |
26mm |
コネクタタイプ: |
ニンボ |
スライドホイール素材: |
ポン |
潤滑システム: |
濃縮 |
最大深度: |
10000-30000mm |
有効長: |
7600-25100mm |
バケット容量: |
0.2-2.5cbm |
| Attribute | Value |
|---|---|
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty | 6 months |
| Weight | 3000 |
| Suitable Excavator(ton) | 20-50ton |
| Core Components | Bearing |
| Product name | Telescopic Excavator Boom |
| Brand | ZH |
| Material | Q355B |
| Condition | 100% new |
| Length | 12-35M |

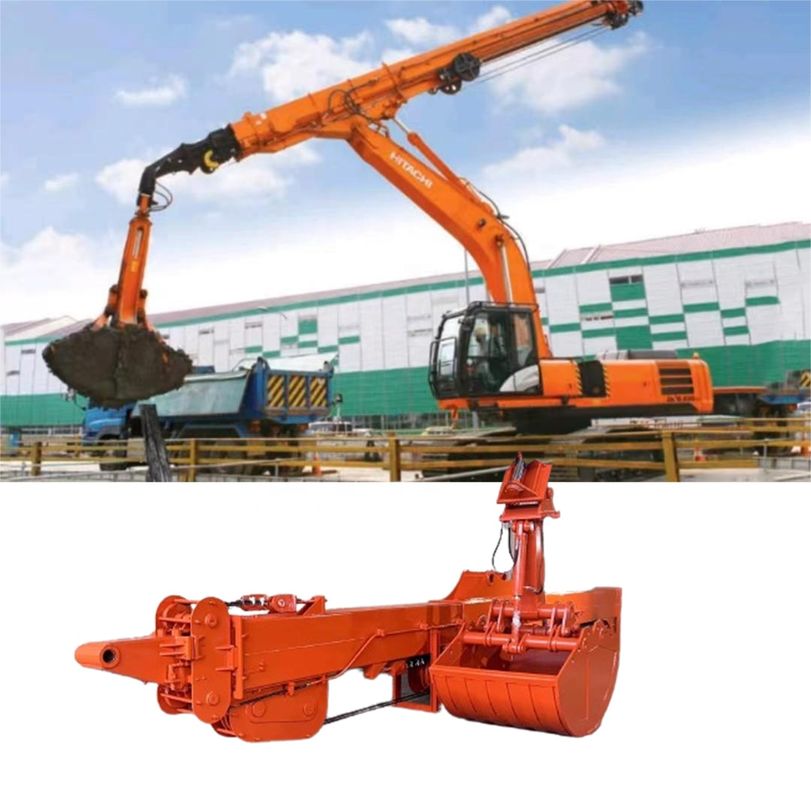

The excavator telescopic boom consists of a fixed body, sliding body, steel wire rope and telescopic cylinder. By changing the number of sliding bodies, it achieves ideal working radius and vertical excavation range. Designed for deep pit excavation tasks when combined with a bucket, it's ideal for grabbing soil, sand or coal.
| Excavator(ton) | Max Depth(mm) | Effective Length(mm) | Bucket Capacity(cbm) |
|---|---|---|---|
| 6-10 | 10000 | 7600 | 0.2-0.3 |
| 11-15 | 14000 | 10500 | 0.4-0.6 |
| 20-30 | 16000 | 12500 | 0.8-1.5 |
| 30-35 | 20000 | 15500 | 1.3-1.66 |
| 40-45 | 25000 | 20500 | 1.8-2.5 |
Our telescopic booms support interchangeable use of digging buckets and grab buckets:
Two sliding wheels on top and bottom separate high-pressure hoses from wire ropes to reduce wear and extend service life.
Thicker wire ropes withstand greater tension and pressure, with high wear resistance for long service life.
Enables telescopic arm retraction when extended horizontally.
Metal construction with high compression resistance and expansion capacity for easy loading/unloading.
Reduces grinding with POM material sliding wheels for high mechanical strength and rigidity.
Multiple access points for convenient lubrication oil refilling, all concentrated at the front of arm.
