プロダクト細部
起源の場所: 中国
ブランド名: Zhonghe
証明: CE
モデル番号: CB01
支払及び船積みの言葉
最小注文数量: 1
価格: 1860-7450
パッケージの詳細: バブル
受渡し時間: 10〜15
支払条件: T/T
供給の能力: 600/ 年
色: |
必要性に従って |
保証: |
80日 |
適用する: |
すべてのタイプの掘削機 |
材料: |
Q355B/Q345B+NM400 |
体重: |
400-3700KG |
販売後サービス: |
オンラインビデオサポート |
タイプ: |
回る機械/Hydraulicは取り組む |
条件: |
100%の新しい状態 |
OEM,ODM: |
受け入れられる |
利点: |
高級者 |
色: |
必要性に従って |
保証: |
80日 |
適用する: |
すべてのタイプの掘削機 |
材料: |
Q355B/Q345B+NM400 |
体重: |
400-3700KG |
販売後サービス: |
オンラインビデオサポート |
タイプ: |
回る機械/Hydraulicは取り組む |
条件: |
100%の新しい状態 |
OEM,ODM: |
受け入れられる |
利点: |
高級者 |

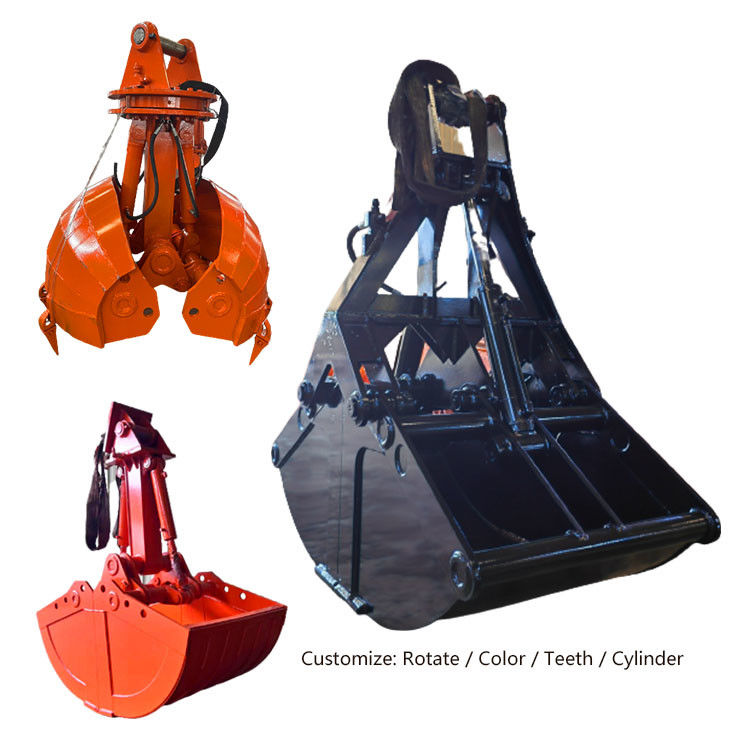

The grab has two forms of hydraulic reversing and non-hydraulic reversing;
There is no hydraulic reverse grab in the oil circuit of the excavator bucket cylinder, and there is no additional hydraulic valve group and pipeline.
The hydraulic reversing grab requires an additional set of hydraulic valves and pipelines for control, and the oil cylinder is equipped with a piston protection device.
The working principle of the excavator casing is to open and grab the material through the elastic drive of the oil cylinder, so as to complete the operation. It is suitable for foundation pit excavation, deep foundation pit excavation, unloading and filling of loose materials such as coal and sand, especially for excavation or filling of some confined spaces.
| Item/Mode | Suitable Excavator(ton) | Weight(kg) | Opening(mm) | Working Pressurebar) | Set Up Pressurebar | Working Flow(pm) |
| JSCS04 | 7-11 Tons | 800 | 1000 | 180 | 250 | 190 |
| JSCS06 | 12-18 Tons | 1200 | 1500 | 210 | 290 | 210 |
| JSCS08 | 18-25 Tons | 2000 | 2200 | 250 | 320 | 220 |
| JSCS10 | 26-35 Tons | 2300 | 2300 | 250 | 340 | 240 |
1. The excavator shell is a multifunctional tool that can be used to perform various tasks.
2. It can be used for sand grabbing, foundation excavation, coal sand mining, and material grabbing and unloading.
3. Easy to operate, can be used for a long time without the need for rest.
4. Improve efficiency and reduce costs.
5. Special heat treatment, long service life.
6. Install the high-pressure hose of the cylinder in the hose protection cover. Shock absorption buffer cylinder.
| Item/Mode | Suitable Excavator(ton) | Weight(kg) | Opening(mm) | Working Pressurebar) | Set Up Pressurebar | Working Flow(pm) |
| JSCS04 | 7-11 Tons | 800 | 1000 | 180 | 250 | 190 |
| JSCS06 | 12-18 Tons | 1200 | 1500 | 210 | 290 | 210 |
| JSCS08 | 18-25 Tons | 2000 | 2200 | 250 | 320 | 220 |
| JSCS10 | 26-35 Tons | 2300 | 2300 | 250 | 340 | 240 |
application
1. Excavating building foundations, deep holes or loading soil, sand, coal, gravel, etc.
2. Digging and loading on the side with limited access or space
3. Loading, unloading, stacking and transportation of steel scrap, crushed aggregate, sawdust and ballast in iron and steel enterprises, ports, docks, stations and warehouses.
customer service
1. Before signing a formal contract with the customer, we will assist in the analysis and provide professional solutions and suggestions based on the project information provided by the customer.
2. An experienced technical team is always ready to meet your unique needs.
3. Your inquiry about our products or prices will be replied within 24 hours
4. Inform customers of the latest order production process in a timely manner, and arrange workshop quality inspections as required.
5. Full online technical support for the product.
shipping
1. Packing: standard export wooden pallet or export wooden box
2. Delivery time: 10-15 working days after receiving the advance payment
3. We have an experienced and professional container packaging team, which can load the largest number of excavator buckets and accessories to help customers save transportation costs.
Q: Are you a manufacturer?
A: We are integrated with industry and trade. Customers only need to pay the factory's fees to have OEM quality products. At the same time, we also provide professional pre-sales and after-sales services.
Q: Are you sure your product is suitable for my excavator?
A: Yes, we have been focusing on front-end intelligent devices for excavators for 5 years, and some products have been OEM by internationally renowned brands for 13 years, such as PC, Hitachi, CAT, Hyundai, Doosan, etc.
Please tell me your excavator model and we will recommend it to you. At the same time, we also accept customized production.
Q: What are the minimum order quantity and payment terms?
A: The minimum order quantity is 1 set. Wire transfer or other payment methods can also be consulted with our customer service.
Q: What is the delivery time?
A: 15 to 30 working days after payment, depending on your order.
Q: How to package and transport?
A: Regarding packaging, it is usually divided into export wooden box packaging (LCL), wooden pallet packaging (container), and iron frame packaging (LCL/container).
Transportation: railway transportation, sea transportation, air transportation, and automobile transportation. Our professional and convenient transportation team provides customers with high-quality one-stop shopping services within three hours from the factory to the port.
Q: If I have any questions after receiving the goods?
A: We provide comprehensive after-sales service. The average warranty period of the product is 12 months (excluding vulnerable parts). If you encounter problems outside the warranty period, we will also provide you with new products at cost. In addition, we provide 24-hour online customer service. If you encounter any questions, you can consult our customer service and we will give you a satisfactory answer.
